고출력증폭기

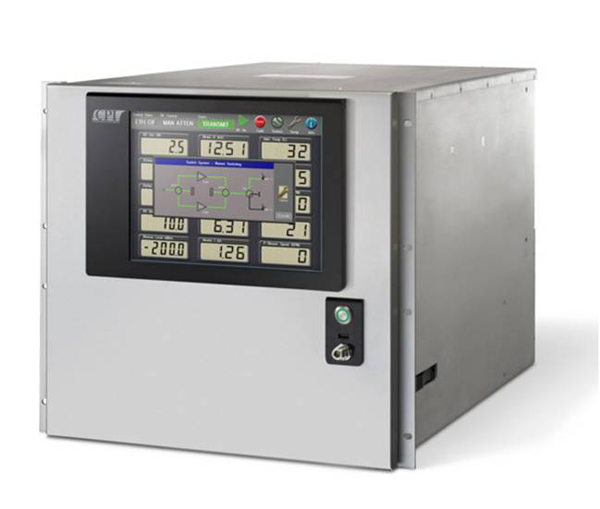

Indoor HPA/TWTA

C, Ku and DBS band

CPI가 독자적인 기술로 설계. 제작한 다양한 Tube와 RF Amplifier를 KTSAT 금산위성센터, 용인위성센터, LG 위성센터와 같은 국제적인 규모의 위성센터와 SkyLife 등 위성방송사업자에게 공급, 30년 이상 고도로 안정된 서비스를 제공하는데 기여하고 있습니다.

Product Detail
  • C, Ku and DBS band
  • User-friendly touchscreen interface
  • Configurable display; select displayed parameters
  • Optional extended frequency ranges, integral linearizers and BUCs ScopeScreen
  • Up to 50% longer TWT life with built-in LIFEEXTENDER technology
Ku-band twta

Outdoor HPA/TWTA

Outdoor HPA/TWTA
Product Detail
  • Available in C, X, Ku, DBS, and Ka-band frequency ranges
  • Output power levels from 200W, 400W, 750W, to 1250W
  • Operating temperature ranges from -40 up to +55oC including solar loading (option to +60oC on certain amplifiers)
  • Optional integral linearizers and L-band BUCs
Ku-band twta

Rack mount TWT amplifiers

Rack mount TWT amplifiers
Product Detail
  • RF power levels from 200W, 400W, 750W, 1250W, 2250W
  • C, X, Ku, and DBS-band frequency ranges
  • Integral linearizer and L-band BUC options available

SuperLinear®️ Amplifiers

SuperLinear® Amplifiers
Product Detail
  • design optimized for the uplink application and only available from CPI
  • SuperLinear C, X, Ku, Ka, DBS band amplifiers
    - 2.25 kW C-band, 1 kW at amplifier flange
    - 2.5 kW X-band, 1.1 kW at amplifier flange
    - 1.25 kW Ku-band, 540W at amplifier flange
    - 1.25 kW DBS band ODU, 600W at amplifier flange
  • Higher linear operating RF power with less prime power than nearest comparable
    - GaN or GaAs SSPAs

TouchPOWER T9UI TWTA

TouchPOWER T9UI TWTA
Product Detail
  • 1.25 KW CW Ku-band
  • 1100W CW at flange
  • 9RU (15.75”) high

B5KO 160W High Power Ka-Band BUC

B5KO 160W High Power Ka-Band BUC
Product Detail
  • 1000 MHz bands in the 27.5 to 31
  • GHz frequency range
  • Multi-band upconverter option available (up to 2 GHz)
  • Linearity
  • IM3 = -25 dBc at 64 W with regard to each of two carriers (90 W with regard to sum of both carriers)
  • Spectral regrowth: -30 dB at 64 W (1.0 symbol rate QPSK modulation)
  • NPR: 19 dB at 64 W
  • Power consumption: 1600 VA max. (1200 VA typ. at rated power)

Ka-Band 650 W ODU

Ka-Band 650 W ODU
Product Detail
  • TL06KO
  • New - introduce from May 2019
  • Available in early 2020
  • Same chassis size as TL05KO
  • TWT 650W peak
  • 250W to 415W CW at flange options
  • Available between 27.0 to 31.0 GHz

V-Band 250W ODU

V-Band 250W ODU

Model TL02VO

250 watt liquid cooled V-band outdoor
TWTA for satellite uplink applications

Product Detail
  • TWT 250W peak, 100W CW at flange
  • 47.2 to 51.4 GHz

SSPA

SSPA
Product Detail
  • Ku-Band Outdoor
  • Ku-Band Outdoor
  • C-Band Indoor
  • C-Band Outdoor
  • X-Band Outdoor
  • Ka-Band Outdoor
