항재밍

항재밍

재밍 신호발생기(Jammer) 및 Anti-jamming, Anti-spoofing 솔루션, 시스템

GPSDome Anti-Jammer

GPSDome은 GPS jamming 및 spoofing 공격 으로부터 보호하고, jamming 및 spoofing 상태에서 작동의 연속성을 제공합니다.

Product Detail
  • GPS jamming 및 spoofing을 방지하여 자율 주행 및 작동을 지속적으로 보장
  • 소형 add-on 장치로서 설치에 용이함
GPSdome Anti-Jammer

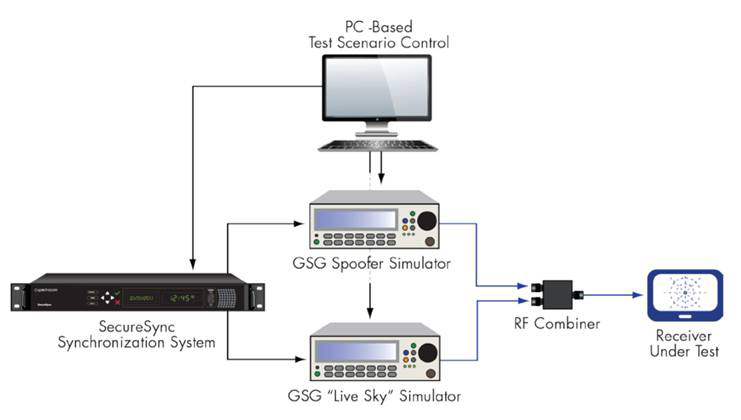

GNSS Vulnerability Test System

실내 환경에서 Spoofer를 제어하여 GPS navigation이 어떻게 반응하는지 TEST 할 수 있습니다.
두 개의 GNSS RF 발생기를 동기화하여 사용자는 다양한 시간, 위치, RF 전력 및 시뮬레이션 된 ‘Live Sky'와 ‘Spoofer를 비교하여 스푸핑 된 신호에 대에 중요한 파라미터를 완벽하게 제어 하며 TEST 할 수 있습니다.

Challenge
  • Hardening GPS/GNSS receiver applications against the threat of spoofing
Solution
  • Orolia GPS/GNSS simulation system with easy control of "real" versus "faked" signals
Results
  • Full understanding of how a system reacts in a spoofing situation and the effectiveness of mitigation techniques or countermeasures

GNSS Vulnerability Test System

GPS Spoofing은 UAS(무인항공기시스템)과 같은 GPS navigation 에 의존하는 장비들에 대해 많은 위협이 있습니다. Vulnerability 테스트 프로그램을 실험실 환경에서 실시간 필드에서 GPS와 동일한 신호를 방출하여 TEST가 가능합니다.
Vulnerability Test System에는 탐지 및 추적 시스템 (제공되지 않음)의 입력을 통해 Spoofing중인 UAS(무인항공기시스템)를 완전히 캡처하고 제어 할 수 있는 소프트웨어가 제공됩니다. Spoofing 중 동기화에 사용되는 수신 안테나의 자동 차단은 소프트웨어 제어 및 RF 스위치를 사용하여 수행됩니다.

Input/Output RF GNSS Signal Generation
  • Output connector: Type N Female
  • Frequency bands:
  • L1/B1: 1539 to 1627 MHz
  • L2/L2C: 1167 to 1255 MHz
  • L5/B2: 1146 to 1234 MHz
  • Constellations: GPS, GLONASS1, BeiDou1
  • Output Signal Level: -65 dBm2
Auxiliary Function Interface
  • API available for detection and tracking system input
General Specifations Power
  • Line Voltage: 90-265 Vrms, 45-440 Hz

VersaPNT Assured PNT Solution

VersaPNT는 어떤 상황에서든 정확한 위치, navigation , 고도, 시간 및 주파수 신호를 제공하는 navigation 및 타이밍 솔루션입니다.

GNSS 수신기, 관성 측정 기술 및 고성능 타이밍 발진기를 결합하여 GNSS 저하 및 거부 된 환경에서 Assured PNT를 제공합니다.

지상, 항공 및 해상 플랫폼에 효율적으로 통합 할 수 있도록 하여 크기, 무게 및 전력 (SWaP)을 최소화합니다.

VersaPNT Features

Accurate in All Conditions
  • GNSS-aided inertial navigation and timing
  • High performance internal time base and inertial sensor to manage potential GNSS loss
  • GNSS time and frequency source with NTP/PTP time server
  • Ability to integrate future PNT signal sources such as STL, CAN Bus, etc.
Flexible
  • High versatility with software-configurable inputs/outputs
  • Network sync, set up and management
  • Easy integration, with small footprint and low power consumption
  • Compatible with external IMUs
  • Victory compatible
  • Measurement data is logged internally and streamed through a serial or LAN interface
Compact and Rugged
  • Ruggedized (MIL-STD-810G) low size, weight and power
  • Conduction-cooled
  • Mil-performance connectors
  • Standby power mode
  • Configurable for multiple vehicle and airframe platforms

VersaPNT Applications

Airborne
  • Observation payload (radars, optronics, electronic warfare)
  • Flying test bench
  • Flight analysis
  • Tactical UAV navigation
Ground
  • Blue Force Tracking
  • Vehicle navigation
  • Satcom On the Move (SOTM)
  • Anti-IED jamming systems
  • Mobile radios and C4ISR
  • Robotics
Marine/Naval
  • Sensor support (radars, sonars, optronics, electronic warfare)
  • Communications networks
  • Offshore/DSO platforms

재밍(Jammer) 신호 발생기

Product Detail
  • 1.0-2.5GHz
  • 2.0-8.0GHz
  • 6.0-18.0 GHz
  • 8.0-12.75GHz
  • 8.0-18.0 GHz
  • 18.0-22.0 GHz
  • 18.0-26.5 GHz
  • 26.5-40.0 GHz
항재밍용 신호 발생기

8230AJ GPS/GNSS Anti-Jam Outdoor Antenna

8230AJ는 GNSS 고 이득 (40dB) 실외 안테나입니다.

Product Detail
  • High bandwidth to receive GNSS signals
    • GPS L1
    • GLONASS L1
    • BeiDou B1
    • Galileo E1
    • QZSS L1
  • Unique conical antenna pattern rejects interference from the horizon
  • High out-of-band rejection
  • Designed for harsh environments (IP67 rated).
8230AJ GPS/GNSS Anti-Jam Outdoor Antenna

BroadSense

BroadSense는 실시간 및 과거의 데이터를 제공하며, GPS jamming 및 spoofing 감지 기능 제공합니다.

Product Detail
  • jamming 및 spoofing 검출 알고리즘 활용하여 GPS 신호가 손상되는 시점 감지
  • Screen을 통해 실시간 데이터 출력 제공
  • USB or UART 통한 NMEA 메시지 출력
BroadSense

BroadShield

BroadShield는 GPS jamming 및 spoofing을 실시간으로 감지 및 보호 할 수 있는 소프트웨어 입니다.

Product Detail
  • GPS jamming 및 spoofing 실시간 감지 및 보호
  • 주파수 모니터링 및 신호 이상 감지 시 장비 동기화 비활성화 실시
  • 악의적인 GPS jamming 및 spoofing 으로부터 시스템 안전 유지
BroadShield

ThreatBlocker GPS Jamming and Spoofing Protection

ThreatBlocker는 GPS jamming 및 spoofing 로부터 감지 및 보호 기능을 제공합니다.

Product Detail
  • BroadShield의 software 와 Aerospace의 BLISS algorithms 사용
  • GPS jamming 및 spoofing 감지 및 jamming 및 spoofing 차단
  • Web UI user interface 제공
ThreatBlocker GPS Jamming and Spoofing Protection
